Comparison Microscope MS-1N
Educational Institution: Cherkasy State Technological University

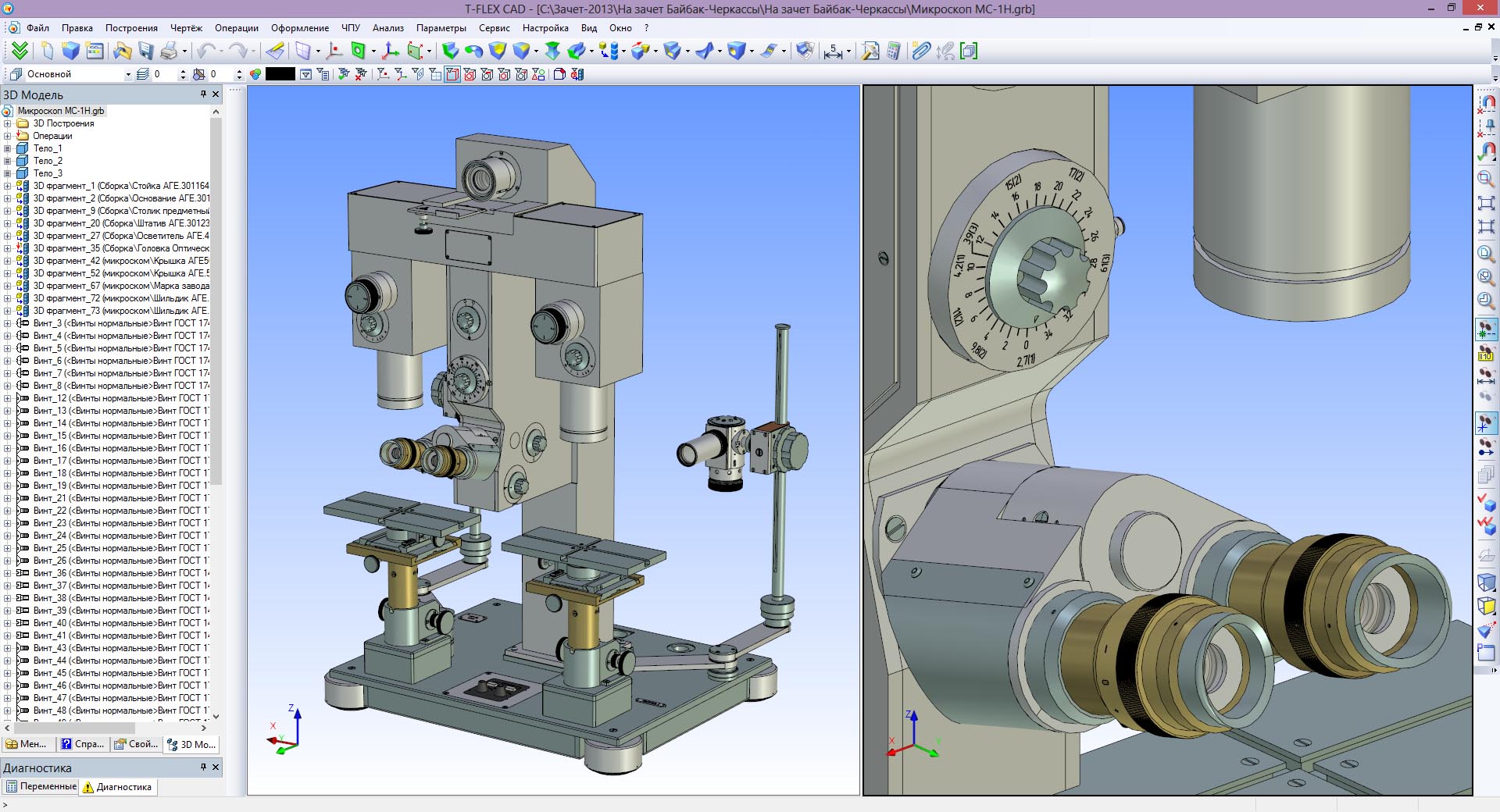

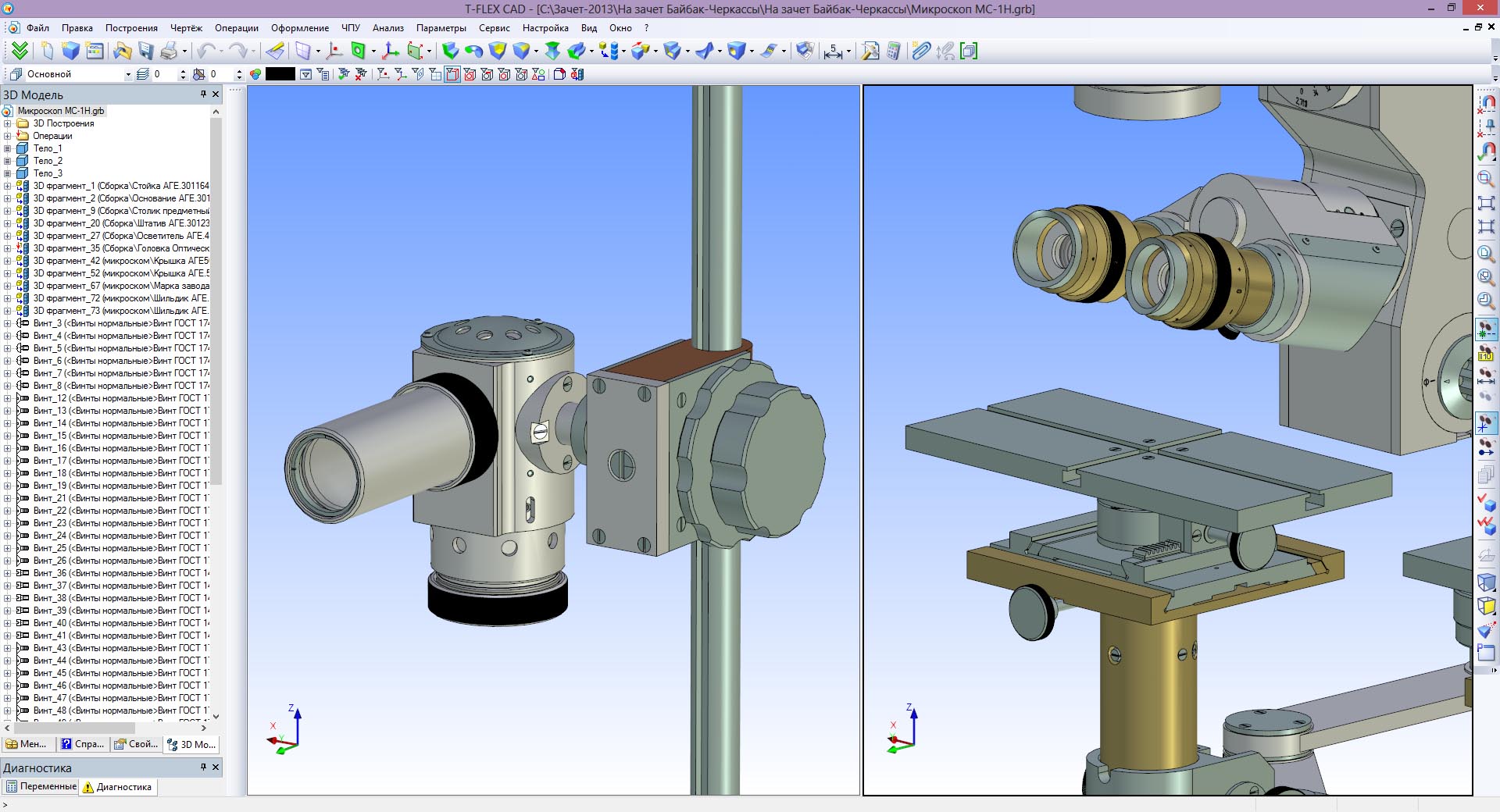

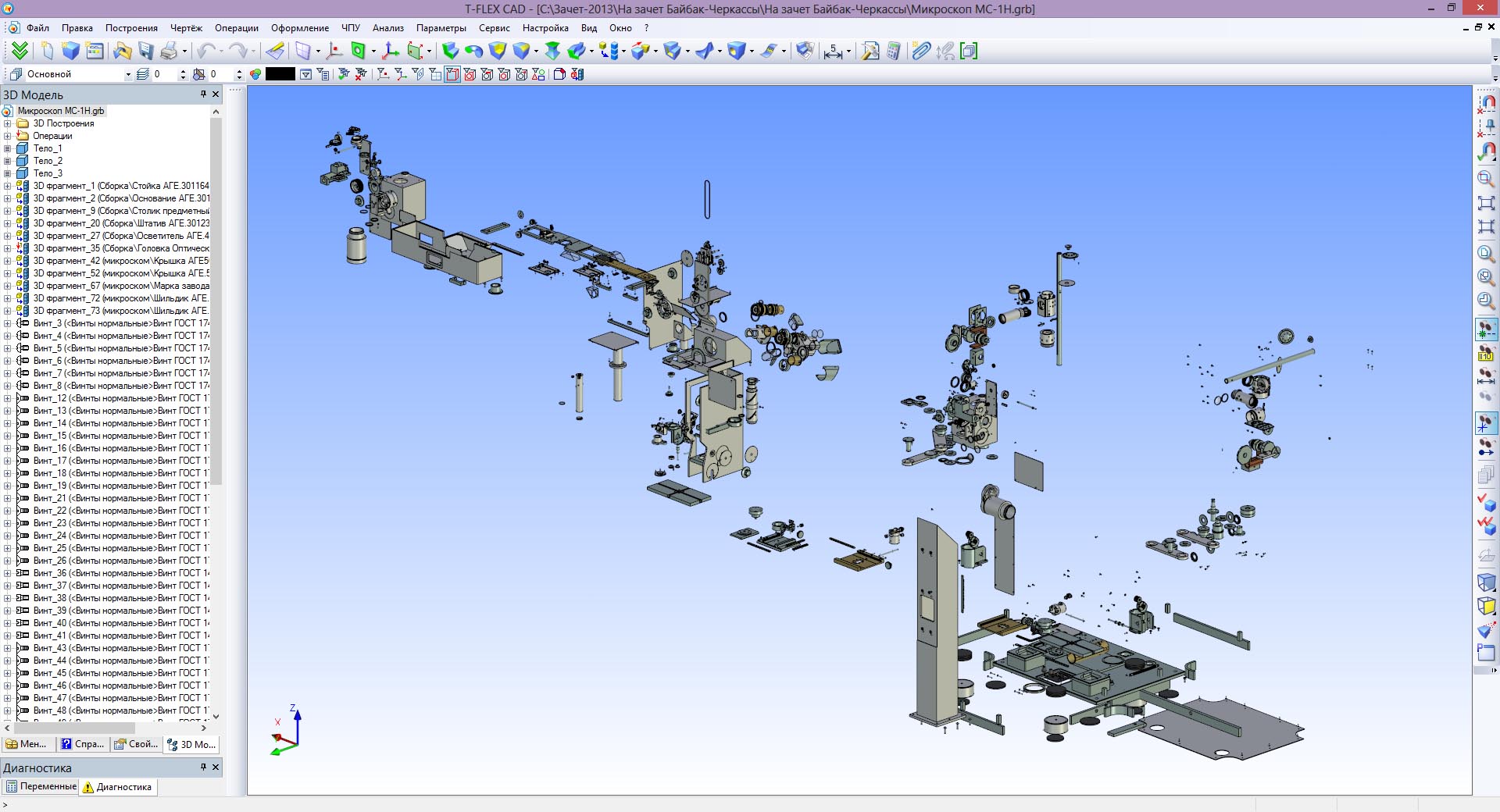

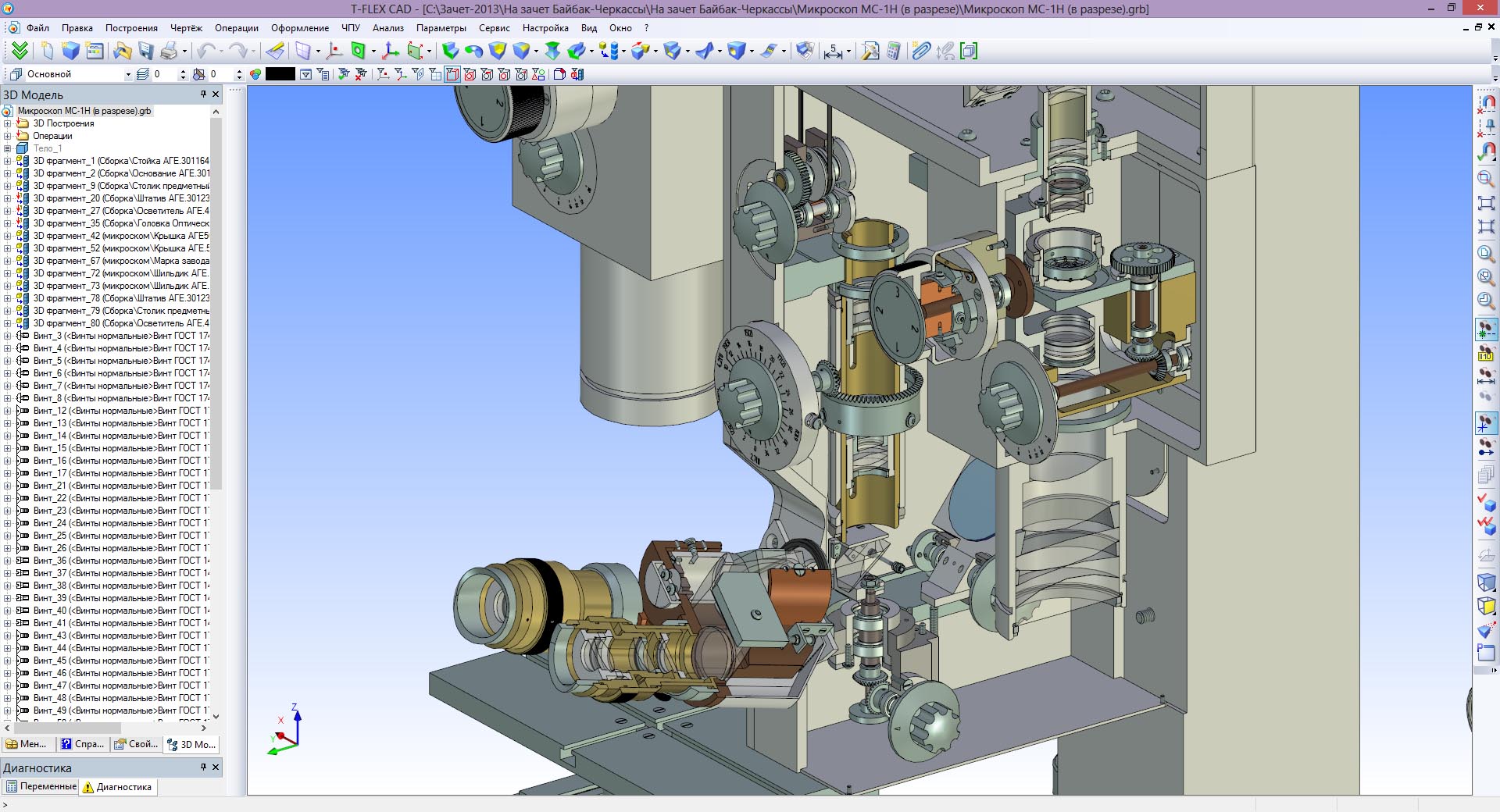

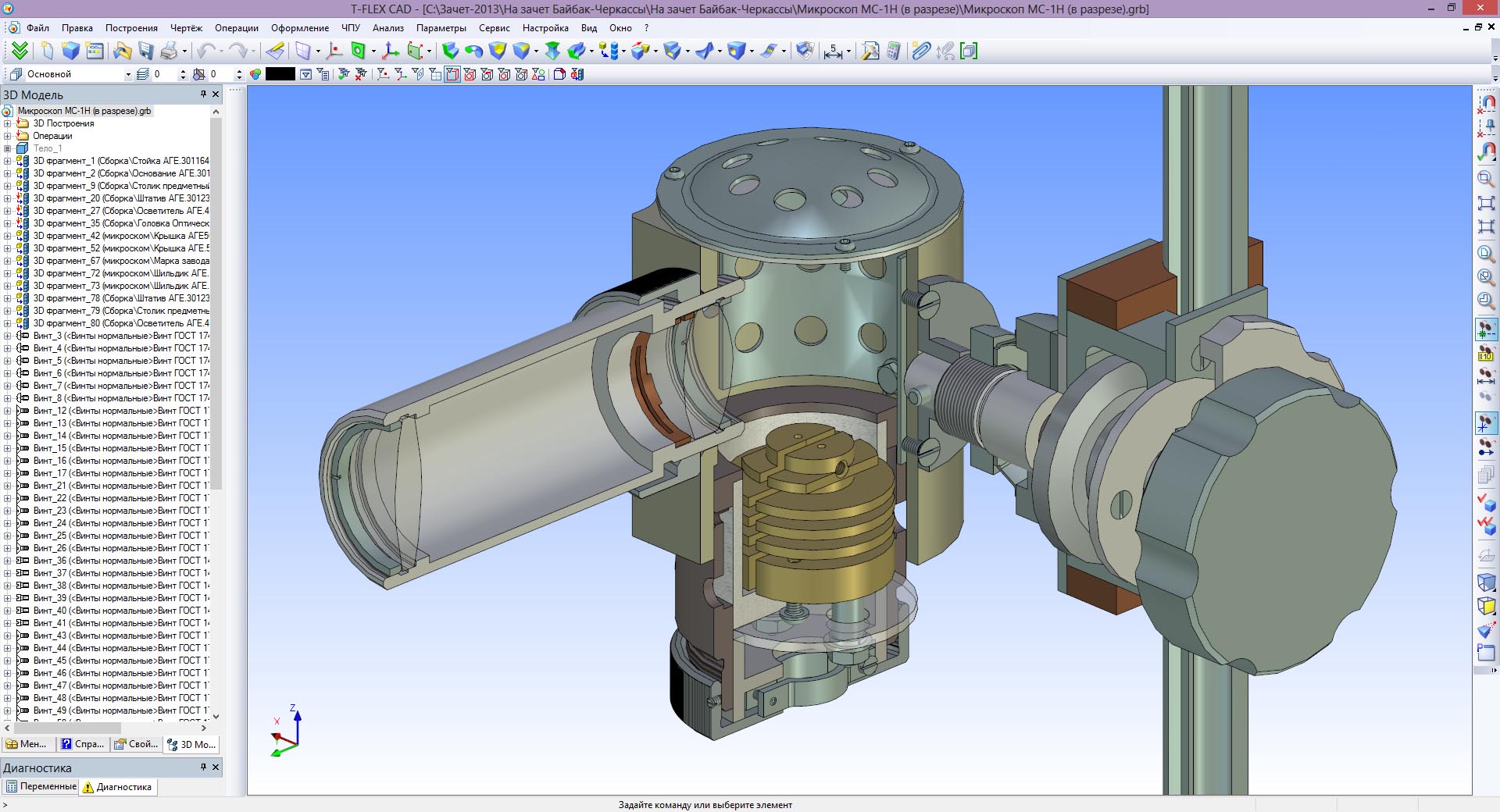

Project Description: Microscope MS-1N (desktop comparison microscope) is typically used to identify sleeves from the place of incident. The microscope was manufactured in the amount of 26 pieces (for each region of Ukraine) by GP NPK "Photopribor" Cherkassy. The structure of the microscope includes optical head, stand, base, two lamps, and two slide tables. The microscope consists of two parts, each with its own lighting systems, and common part of observation and photography. The distinctive features of the microscope are: constant working distance for all magnifications, smooth-step increase change, direct image of objects in the visual observation that enables you to install on the stage objects of various configurations. The design of the microscope provides the opportunity to obtain photo and video. Microscope optical system consists of two identical independent optical schemes that project image of two objects in a single plane. The resulting images can be visually observed with binocular attachments, as well as shot on phone and video camera. Microscope works in reflected light at oblique and direct illumination. Three-dimensional model of the microscope assembly has more than 500 fragments. All parts of the microscope were created using the design documentation of the manufacturer.
